Product Description:
INGKE YKM8-04MSMA 100% cross 86 6319 1120 00004 Binder
Part No.: 86 6319 1120 00004 Binder
INGKE Part No.: YKM8-04MSMA
Made in China: INGKE Technology

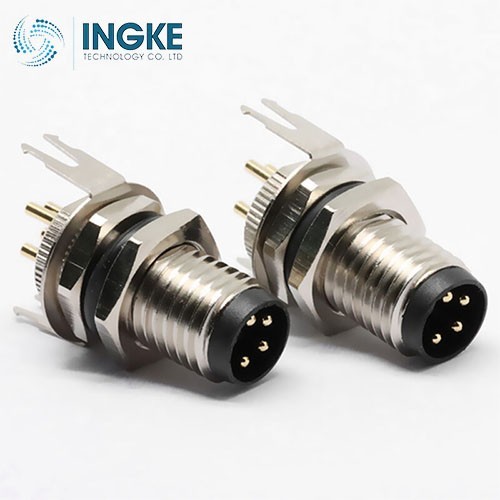

Description: 86 6319 1120 00004 Binder M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions: 4
Shell Size - Insert: M8-4
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP67 - Dust Tight, Waterproof
Material Flammability Rating: UL94 HB
Features: Board Lock
Current Rating (Amps): 4A
Voltage Rating: 50VAC, 60VDC
Operating Temperature: -40°C ~ 85°C
Contact Material: Copper Alloy
Insert Material: Polyamide (PA66), Nylon 6/6
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
