Product Description:
INGKE YKM12-PTB3203A 100% cross T4145035031-001 TE Connectivity
Part No.:
T4145035031-001 TE Connectivity
INGKE Part No.: YKM12-PTB3203A
Made in China: INGKE Technology
Description:

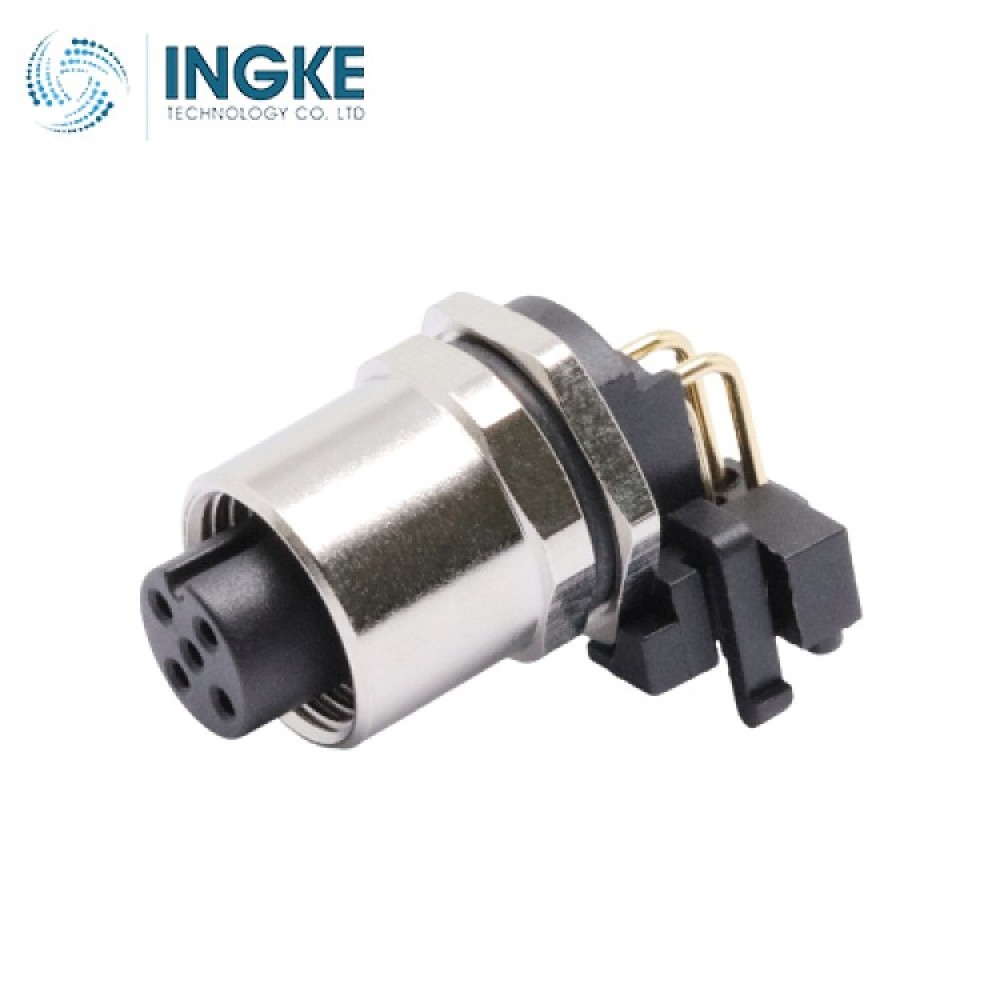

T4145035031-001 TE Connectivity M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 3
Shell Size - Insert: M12-3
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Rear Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Copper Alloy
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Board Guide, Board Lock
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 85°C
Insert Material: Polyamide (PA66), Nylon 6/6
Applications: Industrial
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
