Product Description:

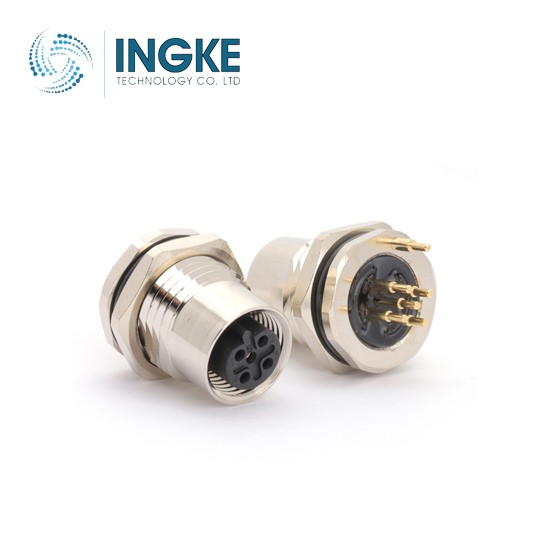

INGKE YKS12-M205BPRP 100% replace 1553022 Phoenix Contact
Part No.: 1553022 Phoenix Contact
INGKE Part No.: YKS12-M205BPRP
Made in China: INGKE TECHNOLOGY
Lead time: 1-2 weeks
MOQ: 1 pcs
Description: 1553022 Phoenix Contact M12 5 Position Circular Connector Receptacle, Female Sockets Solder
Category:Connectors, Interconnects, Circular Connectors, Circular Connector Assemblies
Connector Type: Receptacle, Female Sockets
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Push-Twist
Orientation: B
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Black, Silver
Contact Material: Zinc Alloy
Insert Material: Polyamide (PA66), Nylon 6/6
Current Rating (Amps): 4A
Voltage Rating: 60V
Operating Temperature: -25°C ~ 85°C
Material Flammability Rating: -
Ingress Protection: IP67 - Dust Tight, Waterproof
Applications: Industrial
RoHS Compliant and REACH
