Product Description:

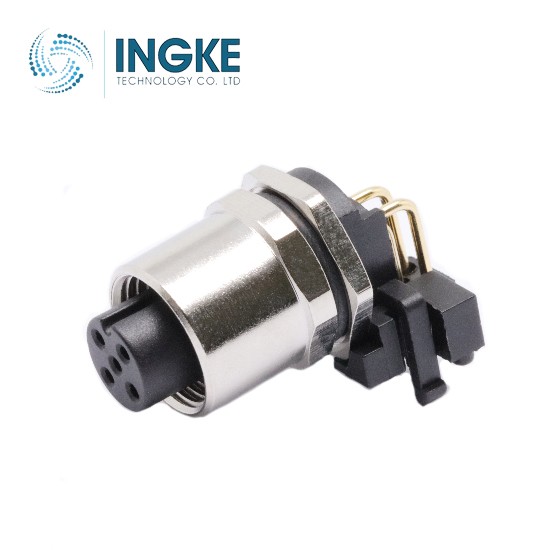

INGKE YKM12-PTB3204A 100% cross 99343260104 Binder
Part No.: 99343260104 Binder
INGKE Part No.: YKM12-PTB3204A
Made in China: INGKE Technology
Description: 99343260104 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Copper Zinc
Shell Finish: Nickel
Contact Finish - Mating: Gold
Shielding: Shielded
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 85°C
Contact Material: Bronze
Insert Material: Polyamide (PA), Nylon, Glass Filled
Ingress Protection: IP68 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
