Product Description:
INGKE YKM12-FG08X22A 100% cross MMT471A315-0001 METZ CONNECT
Part No.: MMT471A315-0001 METZ CONNECT
INGKE Part No.: YKM12-FG08X22A
Made in China: INGKE Technology

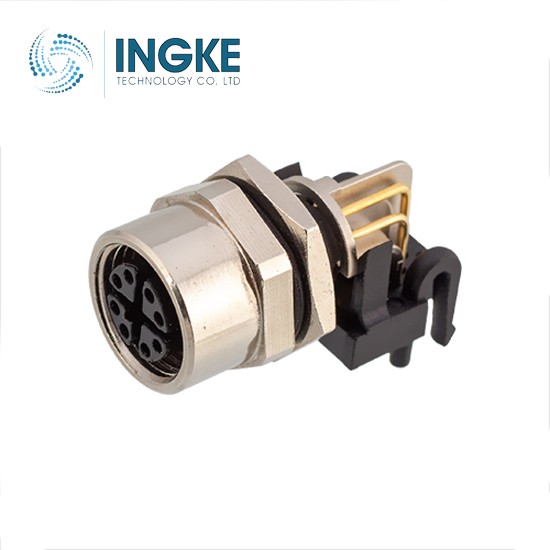

Description: MMT471A315-0001 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Jack, Female Sockets
Number of Positions: 8
Shell Size - Insert: M12-8
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Rear Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: X
Primary Material: Metal
Shell Material: Copper Zinc
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Board Guide, Board Lock
Shielding: Shielded
Voltage Rating: 50VAC, 60VDC
Operating Temperature: -40°C ~ 85°C
Contact Material: Copper Zinc
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Applications: Railway
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
