Product Description:
INGKE YKP12-M212APRP 100% cross 6-2271143-2 TE Connectivity
Part No.: 6-2271143-2 TE Connectivity
INGKE Part No.: YKP12-M212APRP
Made in China: INGKE Technology

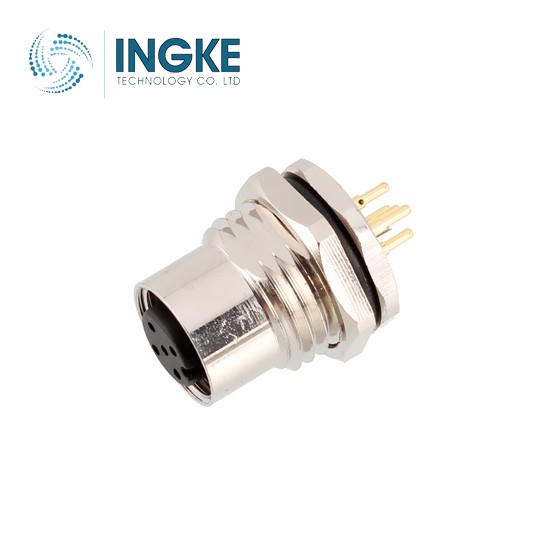

Description: 6-2271143-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 12
Shell Size - Insert: M12-12
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP68 - Dust Tight, Waterproof
Shielding: Unshielded
Current Rating (Amps): 2A
Voltage Rating: 30VAC/DC
Operating Temperature: -40°C ~ 85°C
Contact Material: Bronze
Contact Finish Thickness - Mating: 19.7µin (0.50µm)
Insert Material: Polyamide (PA), Nylon
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
