Product Description:
INGKE YKT-225066NL 100% compatible with 2250660-1 TRP
Part No.: 2250660-1 TRP
INGKE Part No.: YKT-225066NL
Made in China: INGKE Technology

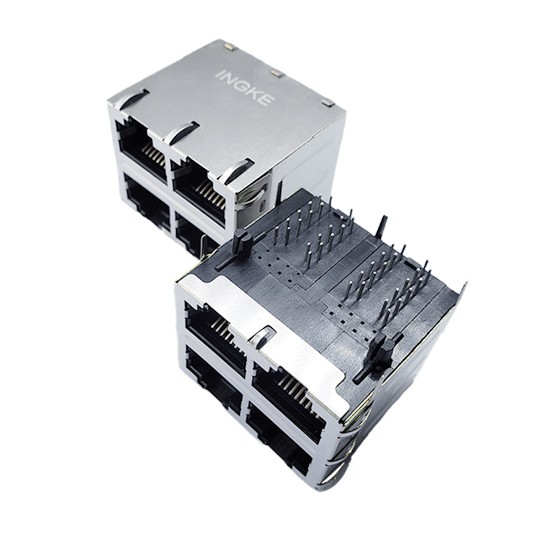

Description: 2250660-1 TRP 4 Ports RJ45 10G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 4
Number of Rows: 2
Applications: 10G Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.165" (29.59mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 8
Shielding: Unshielded
Features: Board Guide, Light Pipe
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
