Product Description:
INGKE YKM12-PTB3104A 100% cross T4144035041-000 TE Connectivity
Part No.:
T4144035041-000 TE Connectivity
INGKE Part No.: YKM12-PTB3104A
Made in China: INGKE Technology
Description:

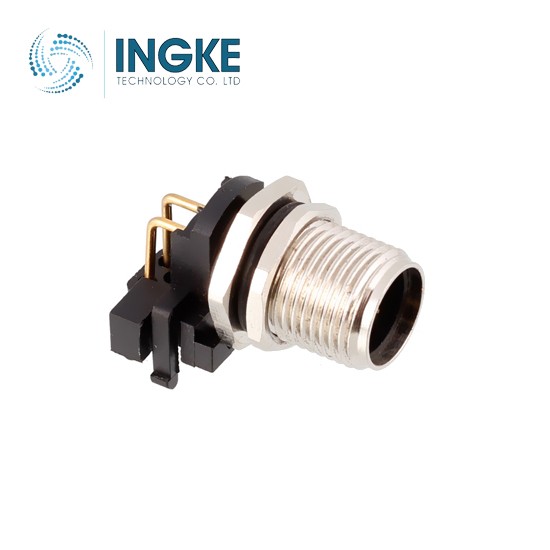

T4144035041-000 TE Connectivity M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Number of Contacts: 3 Contact Shielding: Shielded
Connector Type: Receptacle, Male Pins
Number of Positions: 4
Shell Size - Insert: M12-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Contact material: Copper Alloy
Contact surface mating side: gold
Insert Material: Polyamide (PA66), Nylon 6/6
Current Rating (Amps): 4A
Voltage Rating: 250V
Operating Temperature: -40°C ~ 85°C
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
