Product Description:
INGKE YKS-005401NL 100% compatible with J0B-5401NL Pulse
Part No.: J0B-5401NL Pulse
INGKE Part No.: YKS-005401NL
Made in China: INGKE Technology

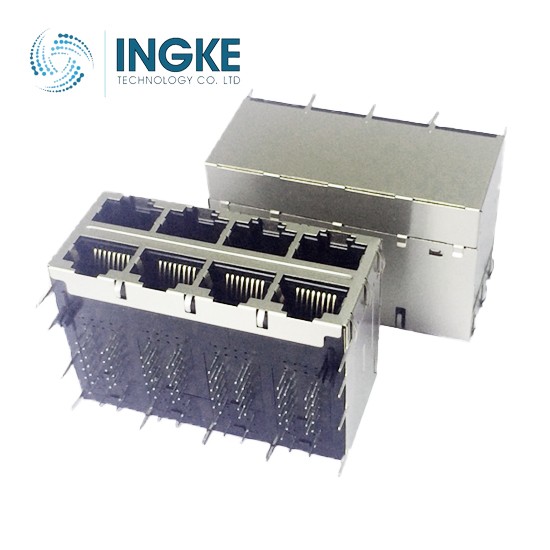

Description: J0B-5401NL Pulse 8 Ports RJ45 5G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 8
Number of Rows: 2
Applications: 5G Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.002" (25.46mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy; Stainless Steel
Housing Material: Thermoplastic
Category: Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
