Product Description:

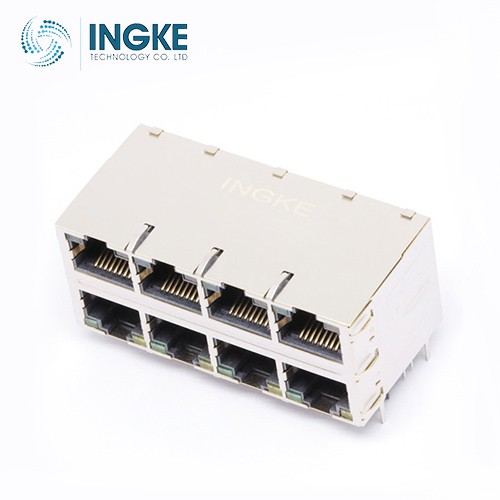

INGKE YKG-857261NL 100% compatible with 857261001 Molex
Part No.: 857261001 Molex
INGKE Part No.: YKG-857261NL
Made in China: INGKE Technology
Description: 857261001 Molex 8 Ports RJ45 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 8
Number of Rows: 2
Applications: 10/100/1000 Base-T, Power over Ethernet+ (PoE+)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.003" (25.48mm)
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Contact Finish Thickness: Flash
Shield Material: Brass
Housing Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Category: Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
