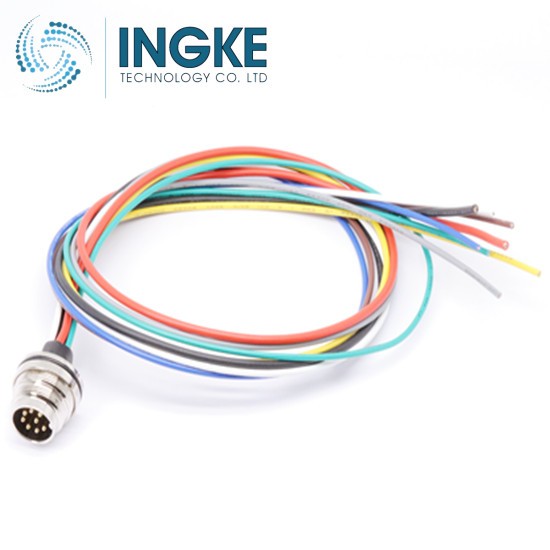

YKP16-E108ASRH-500 M16 Cable Assembly

Category： Other Circular Connector
M16 Cable Male 8Pin
INQUIRY EMAIL

Product Description:

YKP16-E108ASRH-500 M16 Connector Male 8Pin Cable Assembly

YKP16-E108ASRH-500 100% cross CA0911G118005 Amphenol
YKP16-E108ASRH-300 100% cross CA0911G118003 Amphenol
YKP16-E108ASRH-1000 100% cross CA0911G118010 Amphenol

Part No: YKP16-E108ASRH-500
Made in China: INGKE TECHNOLOGY
Lead time: 1-2 weeks
MOQ: 1 pcs
Connector End A: M16 Connector Male 8Pin
Connector End A Pin Count: 8 Position
Connector End B: Bared
Gender: Male
Cable Length: 0.5m (can be customized)
Coding: A Coded
Current Rating: 5A
Voltage Rating: 125V
Contact Resistance: ≤5mΩ
IP Rating: IP67
Temperature Rating: -25℃ To +85℃
Standard IEC 61076-2-101
M16 Material:
Housing: Copper Alloy
Insulator: PA
Contact: Copper Alloy Gold Plated
Sealing Ring: NBR
Nut: Copper Alloy
Cable:
Wire Gauge: 16AWG*2C(RD+BK)
20AWG*6C(BN+WH+BU+GN+YE+GY)
PVC

Tags: M16 Cable Assembly
