Product Description:

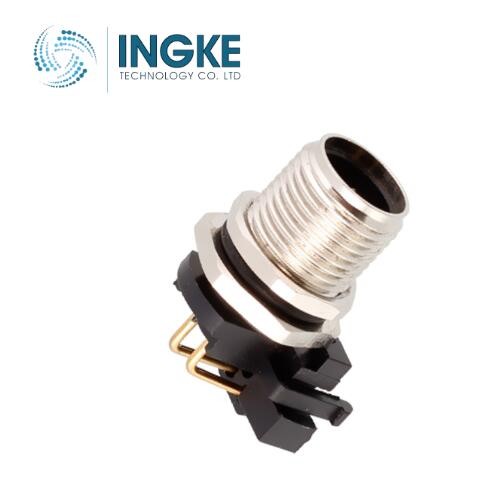

INGKE YKM12-PTB3105A 100% cross 1438037 Phoenix Contact
Part No.: 1438037 Phoenix Contact
INGKE Part No.: YKM12-PTB3105A
Made in China: INGKE Technology
Description: 1438037 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 5
Shell Size - Insert: M12-5
Lead Time: 1-2 Weeks
MOQ: 1PCS
Mounting Type: Panel Mount, Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Twist
Orientation: A
Shielding: Shielded
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Material: Copper Alloy
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 60V
Operating Temperature: -40°C ~ 85°C
Contact Material: Copper Zinc
Insert Material: Polyamide (PA66), Nylon 6/6
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
