Product Description:
INGKE YKM8-PTB0203A 100% cross 2-2172068-2 TE Connectivity
Part No.: 2-2172068-2 TE Connectivity
INGKE Part No.: YKM8-PTB0203A
Made in China: INGKE Technology
Description:

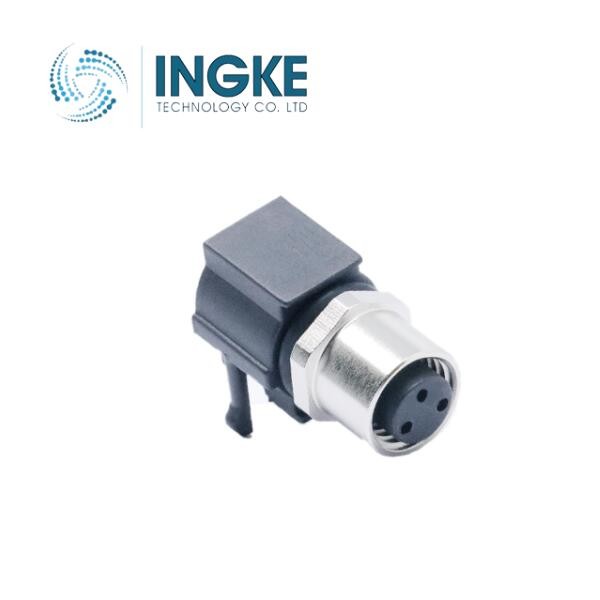

2-2172068-2 M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 3
Shell Size - Insert: M8-3
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: Solder
Fastening Type: Push-Pull
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Board Guide, Board Lock
Current Rating (Amps): 4A
Voltage Rating: 60VAC/DC
Operating Temperature: -40C°C ~ 85°C
Applications: Automation Control, Industrial, Telecommunications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
