Product Description:
INGKE YKP12-M108ASRN 100% cross 859-008-103R001 NorComp
Part No.: 859-008-103R001 NorComp
INGKE Part No.: YKP12-M108ASRN
Made in China: INGKE Technology

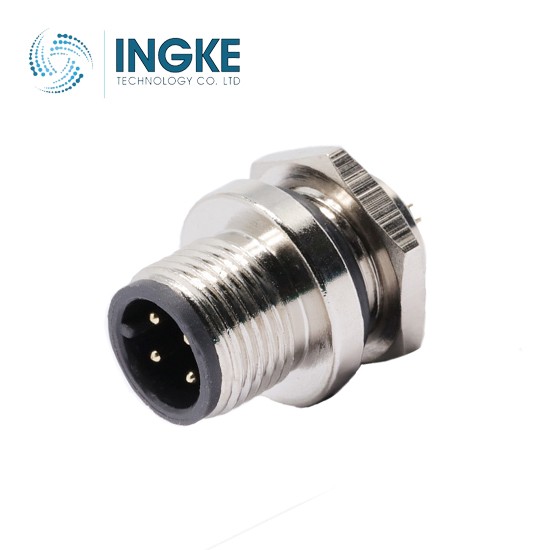

Description: 859-008-103R001 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 8
Shell Size - Insert: M12-8
Mounting Type: Panel Mount
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder Cup
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Orientation: A
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 2A
Voltage Rating: 30V
Operating Temperature: -40°C ~ 85°C
Contact Material: Brass
Contact Finish Thickness - Mating: Flash
Insert Material: Polybutylene Terephthalate (PBT)
Applications: Industrial, Medical
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
