YKM12-RPF04RJ RJM12FD04ST001 NorComp

Product Item : YKM12-RPF04RJ INGKE
Category： M12 Adaptor & Splitter & Cap

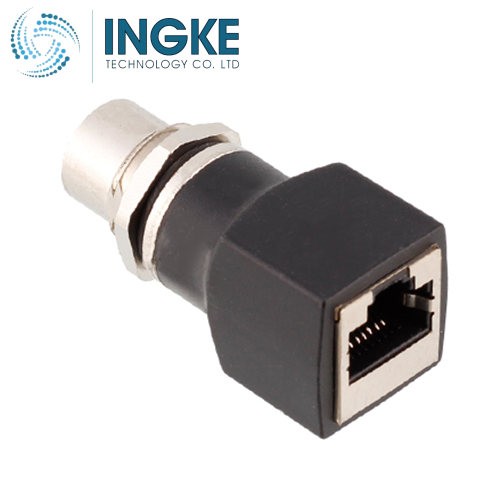

M12 to RJ45 4Pin circular adapter
Replace RJM12FD04ST001 NorComp
INQUIRY EMAIL

Product Description:

YKM12-RPF04RJ RJM12FD04ST001 NorComp

INGKE YKM12-RPM08RJ100% cross RJM12FD04ST001 NorComp

Part No.: RJM12FD04ST001 NorComp
INGKE Part No.: YKM12-RPF04RJ
Made in China: INGKE Technology
Description: RJM12FD04ST001 NorComp M12 to RJ45 4Pin circular adapter
MOQ: 1PCS
Lead Time: within 1 week

Connection 1: M12 Female 4-pin, D-code
Connection 2: RJ45 Female 8P8C RP Copper shell
Mounting part: M16x1.5
Molding: PVC black
M12 Contacts: Copper alloy gold plated
M12 O-ring: NBR black
M12 insulator: PA66 black
M12 housing: Copper alloy nickel plated
Contact Finish - Mating: Gold
Features: Straight
Ingress Protection: IP67 - Dust Tight, Waterproof
Rated voltage: 100V
Rated current: 1.5A
Operating Temperature: -40°C ~ 85°C
Applications: Machinery, vision systems, and automation integration applications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
Chinese UL factory for producing RJM12FD04ST001 NorComp M12 to RJ45 adapter
