Product Description:

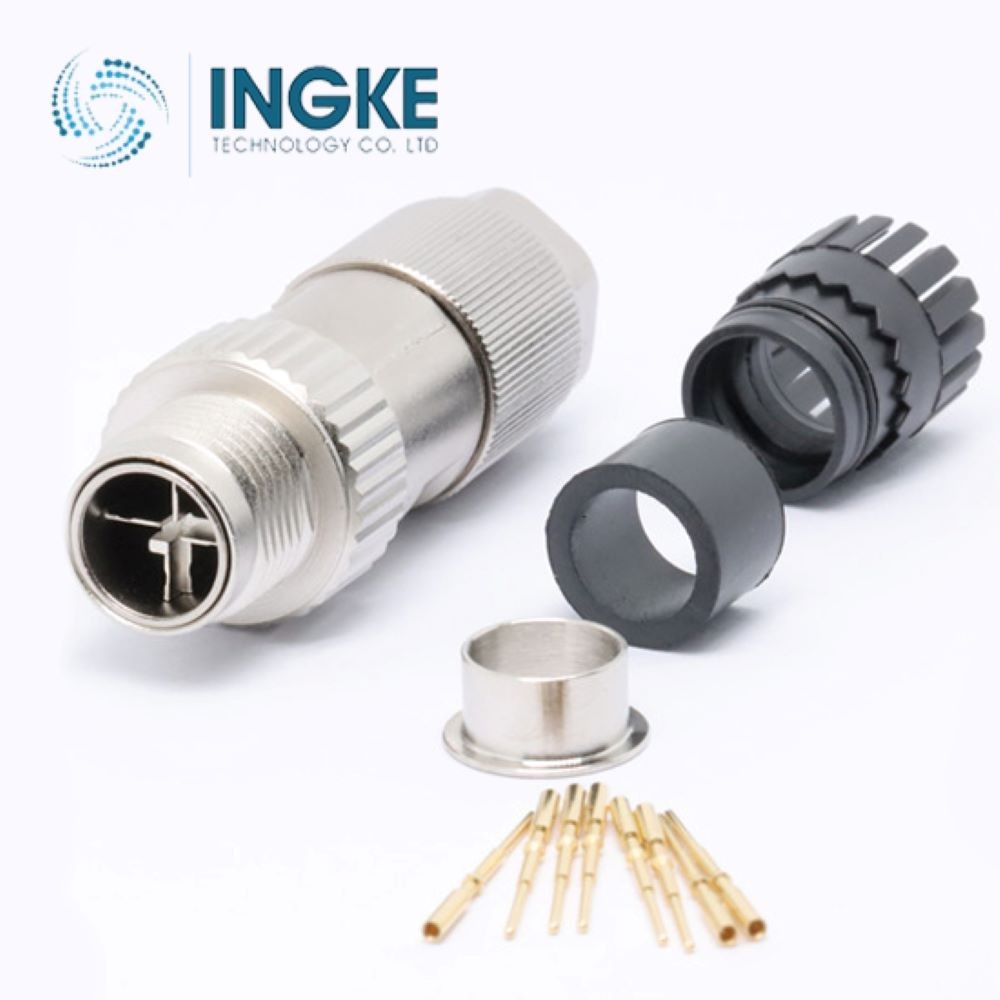

INGKE YKF12-M108XFN 100% cross MSXS-08BMMD-SL8001 Amphenol LTW
Part No.:
MSXS-08BMMD-SL8001 Amphenol LTW
INGKE Part No.: YKF12-M108XFN
Chinese factory: INGKE Technology
Description:
MSXS-08BMMD-SL8001 Amphenol LTW M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions: 8
Shell Size - Insert: M12-8
Orientation: X
Mounting Type: Free Hanging (In-Line)
Termination: IDC
Fastening Type: Push-Twist
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Backshell Material, Plating: Zinc Die Cast, Nickel
Contact Material: Copper Zinc
Insert Material: Polyamide (PA66), Nylon 6/6, Halogen Free
Current Rating (Amps): 0.5A
Voltage Rating: 50VAC, 60VDC
Operating Temperature: -40°C ~ 85°C
Features: Backshell
Shielding: Shielded
Ingress Protection: IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Applications: Industrial, Medical, Automotive
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
