Home      Products     Ganged RJ45 Connector     1x4 Ports RJ45 Connector       YKJ-566651NL 5-6610165-1 TRP


  • YKJ-566651NL 5-6610165-1 TRP

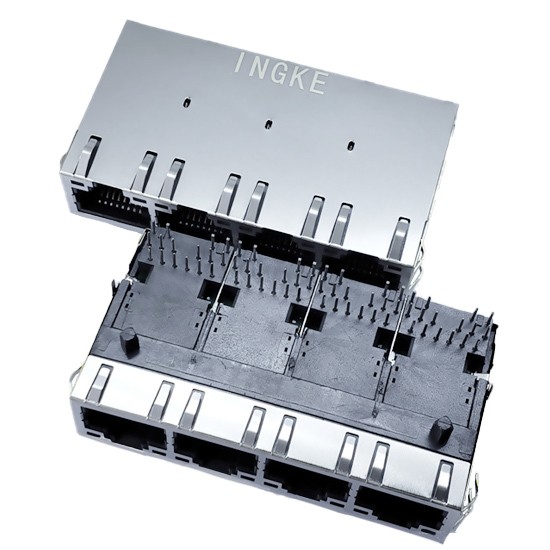

YKJ-566651NL 5-6610165-1 TRP

Product Description:
INGKE YKJ-566651NL 100% compatible with 5-6610165-1 TRP

Part No.: 5-6610165-1 TRP
INGKE Part No.: YKJ-566651NL
Made in China: INGKE Technology
Description: 5-6610165-1 TRP 4 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.555" (14.10mm)
LED Color: Green - Yellow
Number of Cores per Jack: 6
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Polyethylene Terephthalate (PET), Polyester
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
