Product Description:

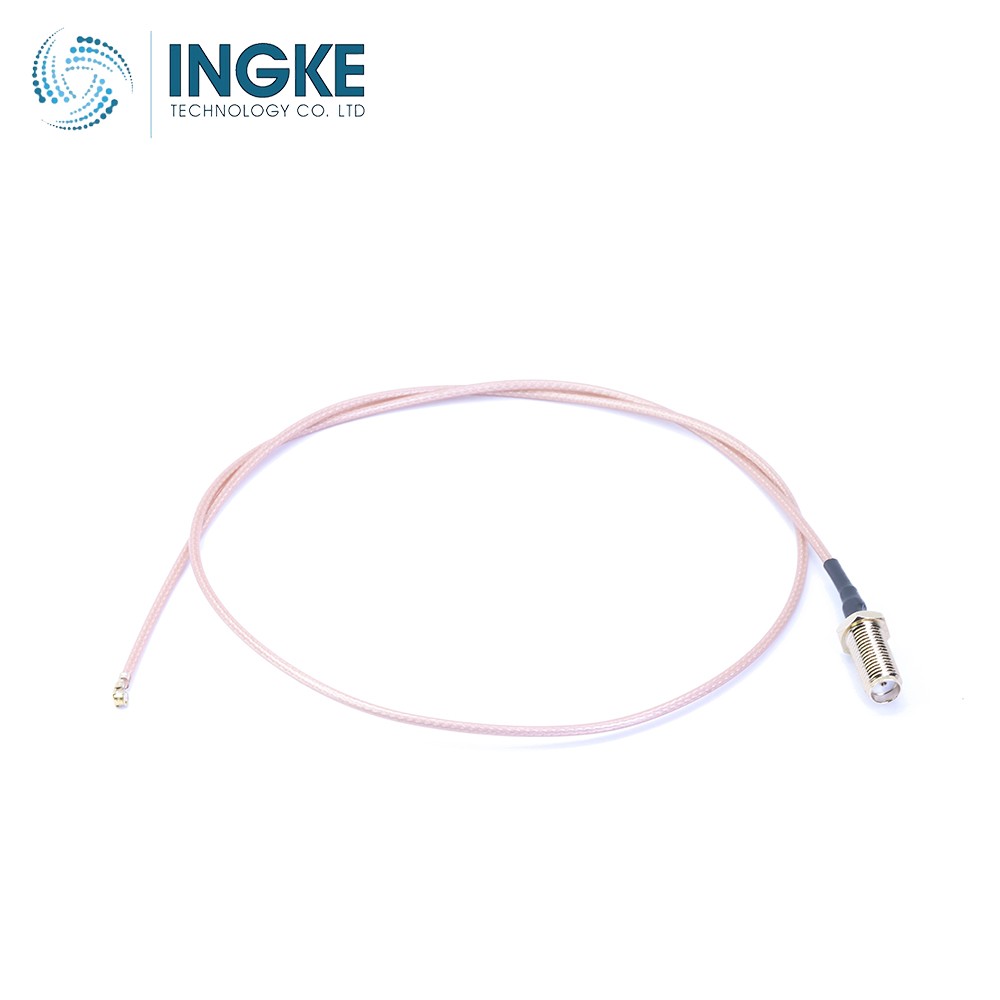

INGKE YKRF-095-900-557-250 100% cross Amphenol RF 095-900-557-250
Part No.: 095-900-557-250 Amphenol RF
INGKE Part No.: YKRF-095-900-557-250
Made in China: INGKE Technology
Description: 095-900-557-250 Amphenol RF Cable Assemblies
MOQ: 1PCS
Lead Time: 1-2 Weeks
Style: U.FL (UMCC), AMC to MMCX
1st Connector: U.FL (UMCC), AMC Plug, Right Angle
1st Contact Gender: Female
1st Connector Mounting Type: Free Hanging (In-Line)
1st Connector Mounting Feature: -
2nd Connector: MMCX Jack
2nd Contact Gender: Female
2nd Connector Mounting Type: Panel Mount
2nd Connector Mounting Feature: Bulkhead - Front Side Nut
Length: 9.843" (250.00mm)
Cable Type: 1.13mm OD Coaxial Cable
Cable Impedance: 50 Ohms
Connector Impedance: 50 Ohms
Overall Impedance: 50 Ohms
Frequency - Max: 6 GHz
Operating Temperature: -40°C ~ 90°C
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
