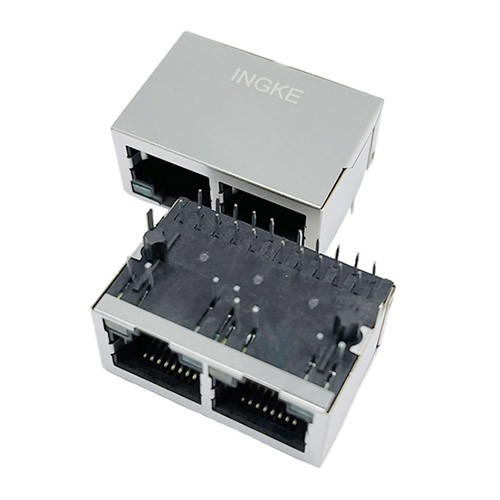

INGKE YKG-749400NL 100% compatible with 74991204400 Würth Elektronik
Part No.: 74991204400 Würth Elektronik
INGKE Part No.: YKG-749400NL
Made in China: INGKE Technology
Description: 74991204400 Würth Elektronik 2 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 2
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.537" (13.64mm)
LED Color: Green, Yellow - Green, Yellow
Number of Cores per Jack: 8
Shielding: Shielded
Features: Board Guide
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
