  • INGKE YKP12-M105ASFM-J50 M12 Circular connectors with PHR-8

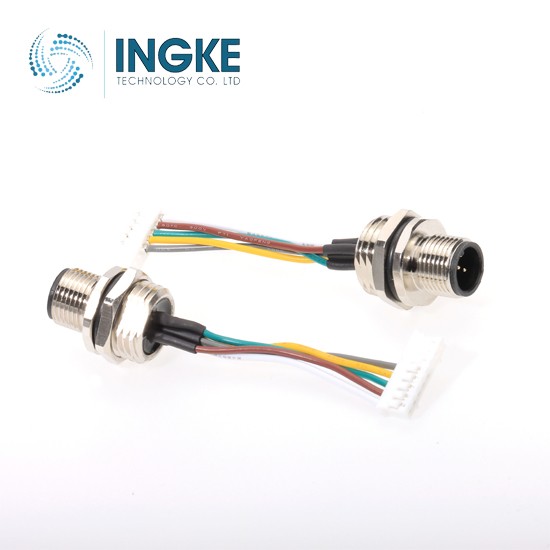

INGKE YKP12-M105ASFM-J50 M12 Circular connectors with PHR-8

Product Description:

INGKE Part No.: YKP12-M105ASFM-J50

Chinese factory: INGKE Technology

Description: M12 Circular connectors with PHR-8

MOQ: 1PCS

Lead Time: 1-2 Weeks

INGKE UL Number E530462

Product specification

  • Number of Positions: 5
  • Shell Size - Insert: M12-5
  • Connector Gender: Male
  • Orientation: A
  • Mounting Type: Panel Mount
  • Insulator: PA66 Black
  • Housing: Brass Nickel Plated
  • O-Ring: Rubber
  • Nut: Brass Nickel Plated
  • Contact: Copper Alloy Gold Plated
  • Operating Temperature: -40°C ~ 85°C
  • Ingress Protection: IP68 - Dust Tight, Waterproof
  • Current Rating (Amps): 4A
  • Voltage Rating: 60V
  • Wire Gauge: UL 24AWG
  • Applications: Industrial

INGKE M8/M12 Connector
1. One reliable system for your applications
2. When communication simply needs to work in industrial environments,INGKE’s M8/M12 connector and complete Industrial Communications portfolio offer proven reliability that meet industry standards.
3. Whether it is for controllers and sensors or robotics and molding machines, the M8/M12 connector system offers you a solution that is time-saving, error-free and without the use of tools.
4. At INGKE, we understand that different applications and industries have different requirements, and we assist our customers with the broadest portfolio to meet those needs.
5. With INGKE’s broad cross-industry expertise, we can offer customized solutions for your applications that you might not have thought about.

INGKE provides a wide range of connectivity solutions for the many requirements of industrial automation.
You benefit from more than just a comprehensive portfolio of accessories:
You also save time and money, thanks to our simple order process and swift delivery of sensors with suitable connectors.
