Product Description:

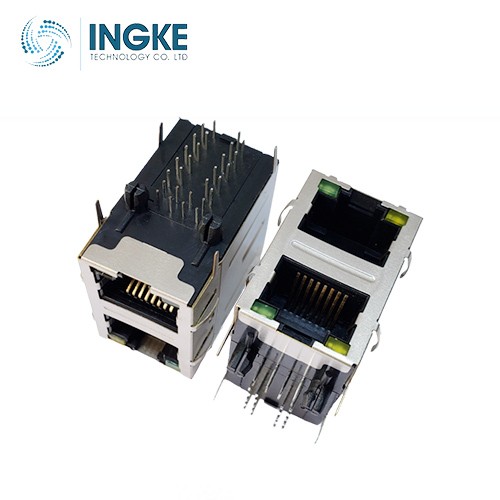

INGKE YKG-225771NL 100% compatible with 2250577-1 TRP
Part No.: 2250577-1 TRP
INGKE Part No.: YKG-225771NL
Made in China: INGKE Technology
Description: 2250577-1 TRP 2 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 2
Number of Rows: 2
Applications: 10/100/1000 Base-T
Mounting Type: Panel Mount, Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.900" (22.86mm)
LED Color: Green, Yellow - Green, Yellow
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
