Product Description:

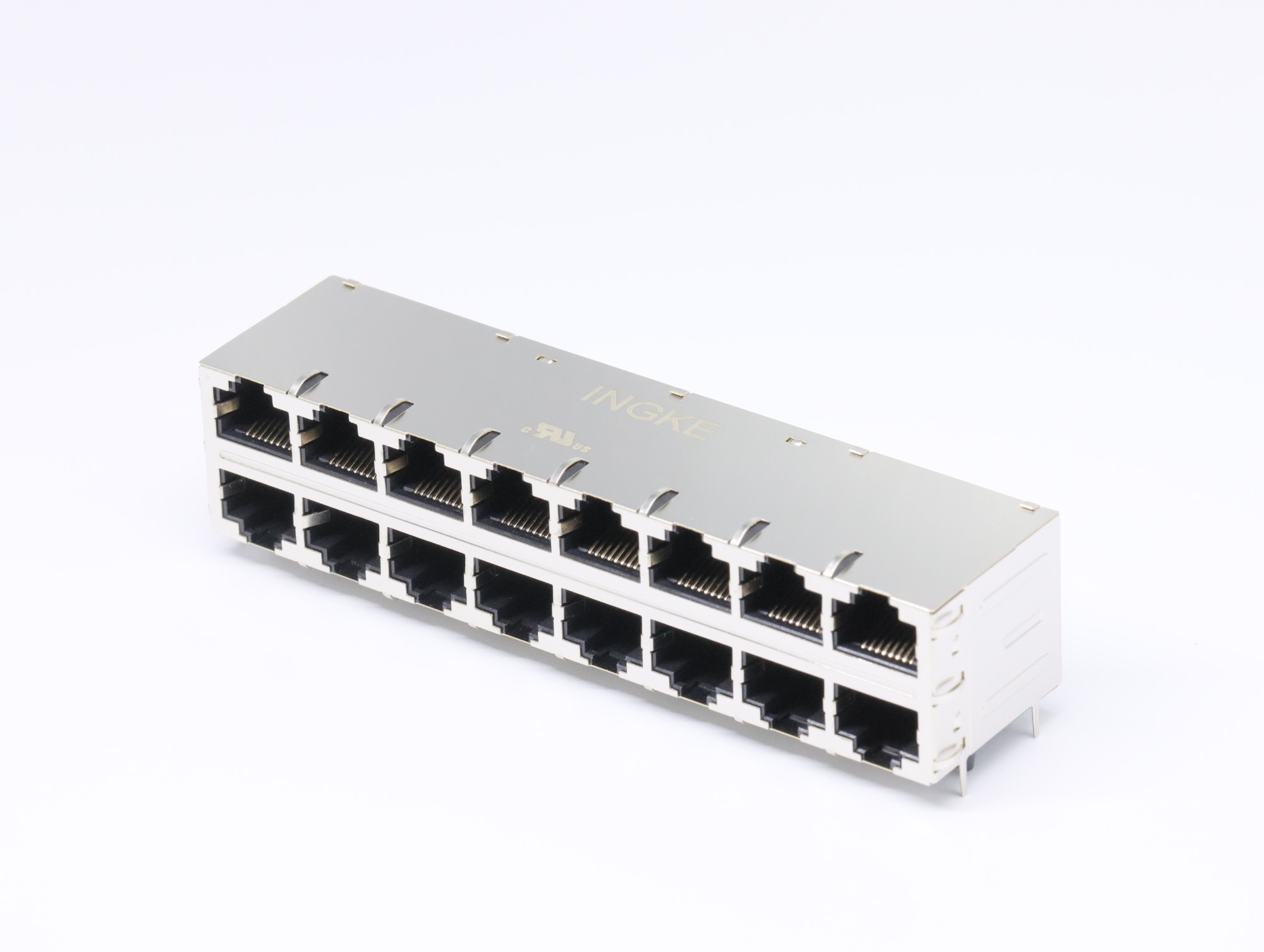

INGKE YKJ-081125NL 100% compatible with 0811-2X8R-28-F Bel Fuse
Part No.: 0811-2X8R-28-F Bel Fuse
INGKE Part No.: YKJ-081125NL
Made in China: INGKE Technology
Description: 0811-2X8R-28-F Bel Fuse 16 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 16
Number of Rows: 2
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.004" (25.50mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
