Product Description:

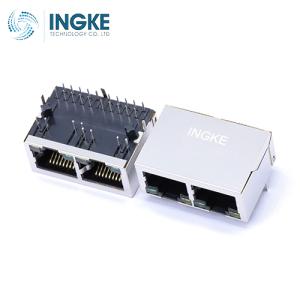

INGKE YKG-118405NL 100% compatible with 1-1840560-5 TRP
Part No.: 1-1840560-5 TRP
INGKE Part No.: YKG-118405NL
Made in China: INGKE Technology
Description: 1-1840560-5 TRP 2 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 2
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.550" (13.97mm)
LED Color: Green, Yellow - Green
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Polyethylene Terephthalate (PET), Polyester
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
