Product Description:

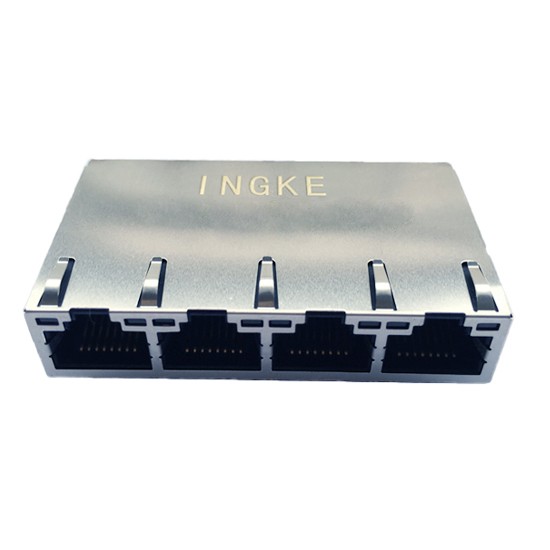

INGKE YKG-082614NL 100% compatible with 0826-1X4T-GH-F Bel Fuse
Part No.: 0826-1X4T-GH-F Bel Fuse
INGKE Part No.: YKG-082614NL
Made in China: INGKE Technology
Description: 0826-1X4T-GH-F Bel Fuse 4 Ports 10/100/1000 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.535" (13.59mm)
LED Color: Green, Orange - Yellow
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Copper Alloy
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
