Product Description:
INGKE YKM8H305AM 100% cross 1424240 Phoenix Contact
Part No.: 1424240 Phoenix Contact
INGKE Part No.: YKM8H305AM
Made in China: INGKE Technology

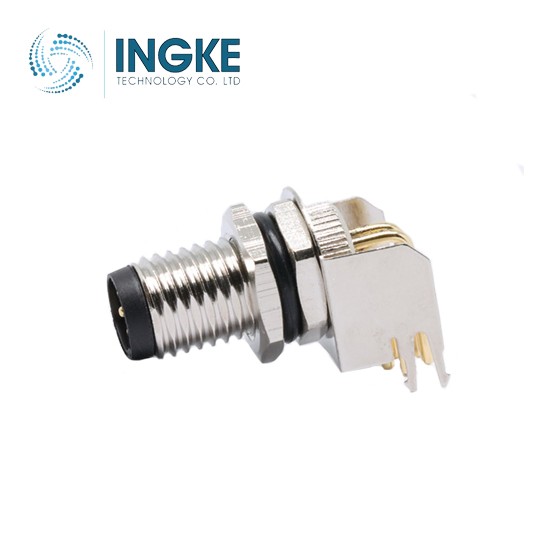

Description: 1424240 M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions: 5
Shell Size - Insert: M8-5
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: B
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 3A
Voltage Rating: 30VAC/DC
Operating Temperature: -40°C ~ 85°C
Contact Material: Copper Alloy
Insert Material: Polyamide (PA66), Nylon 6/6
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
