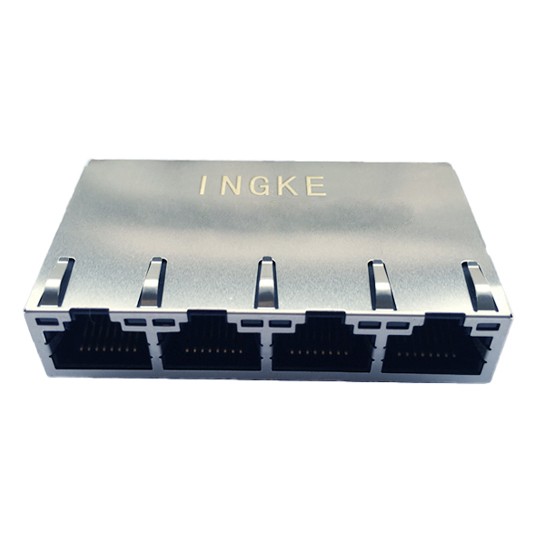

YKG-045679NL KRH-04F-V-HS5-679 KinnexA

INGKE YKG-045679NL 100% compatible with KRH-04F-V-HS5-679 KinnexA

Part No.: KRH-04F-V-HS5-679 KinnexA
INGKE Part No.: YKG-045679NL
Made in China: INGKE Technology
Description: KRH-04F-V-HS5-679 KinnexA 4 Ports 1G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 1G Base-T, AutoMDIX
Mounting Type: Panel Mount, Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.456" (11.58mm)
LED Color: Green, Yellow - Green
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Thermoplastic
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
