  • YKJ-093806NL 0938243006 Molex

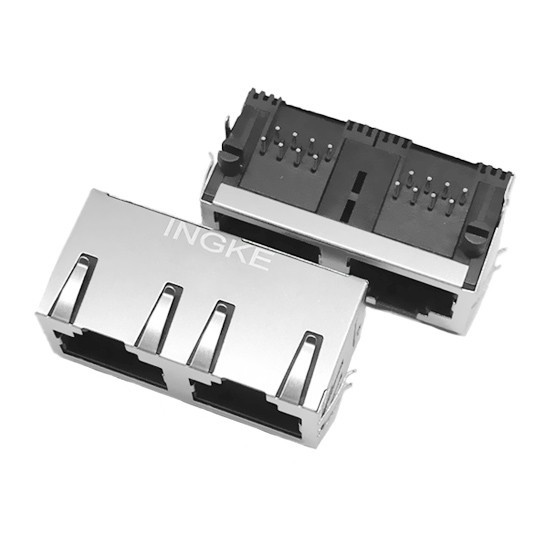

YKJ-093806NL 0938243006 Molex

Product Description:

INGKE YKJ-093806NL 100% compatible with 0938243006 Molex

Part No.: 0938243006 Molex
INGKE Part No.: YKJ-093806NL
Made in China: INGKE Technology
Description: 0938243006 Molex 2 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Number of Ports: 2
Number of Rows: 1
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.555" (14.10mm)
LED Color: Green - Yellow
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Liquid Crystal Polymer (LCP)
Housing Material: Thermoplastic
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
