Product Description:
INGKE YKB12-M105ASFM 100% cross 1838893-3 TE Connectivity
Part No.:1838893-3 TE Connectivity
INGKE Part No.: YKB12-M105ASFM
Made in China: INGKE Technology

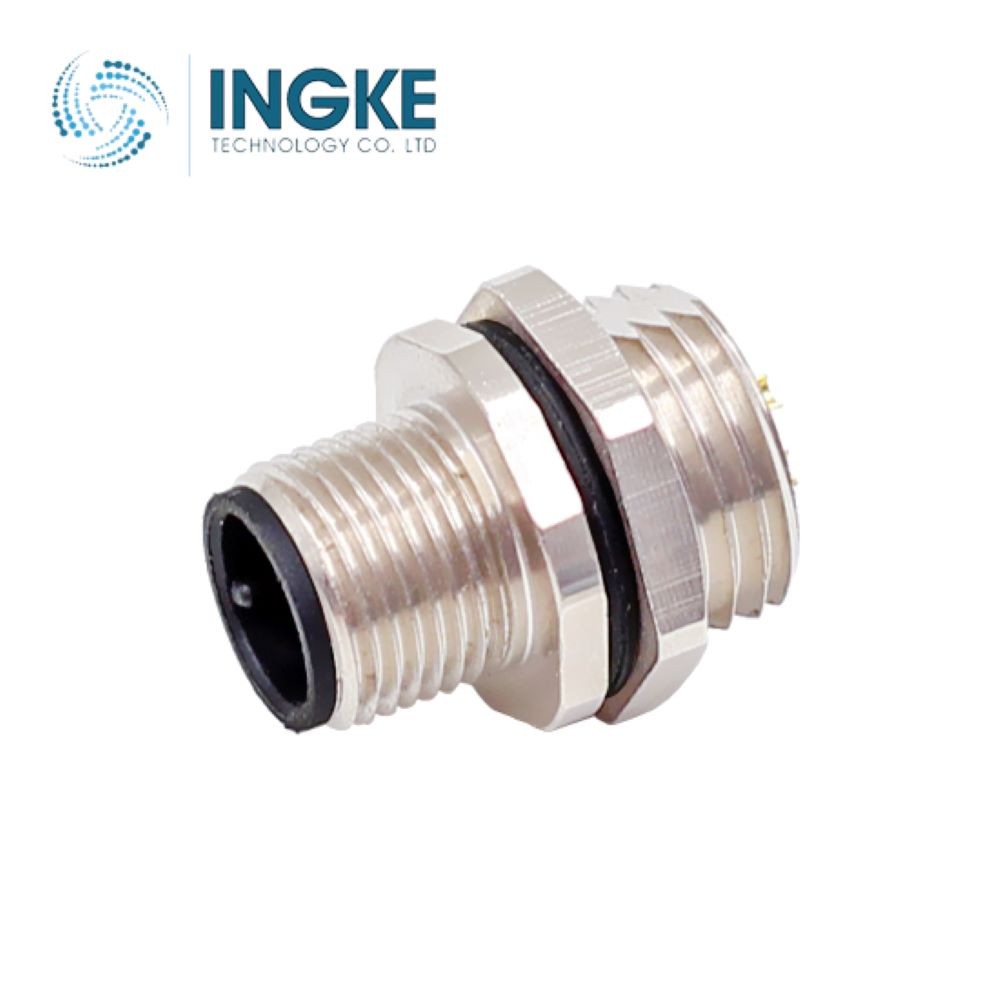

Description:1838893-3 M12 Circular Connector
MOQ: 1PCS
Lead Time:1-2 Weeks
Connector Type: Plug, Male Pins
Number of Positions:5
Number of Positions Loaded: All
Shell Size - Insert:M12-5
Mounting Feature: Bulkhead - Rear Side Nut
Termination: Solder Cup
Primary Material: Metal
Contact Material: Copper Alloy
Insert Material: Polyamide (PA66), Nylon 6/6
Shell Material: Zinc Die Cast
Current Rating (Amps): 5A
Voltage Rating:60VAC/DC
Operating Temperature: -25°C ~90°C
Mounting Type: Panel Mount
Orientation: A
Usage: Industrial, Medical, Automotive
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL):1 (Unlimited)
RoHS Compliant and REACH
