Product Description:

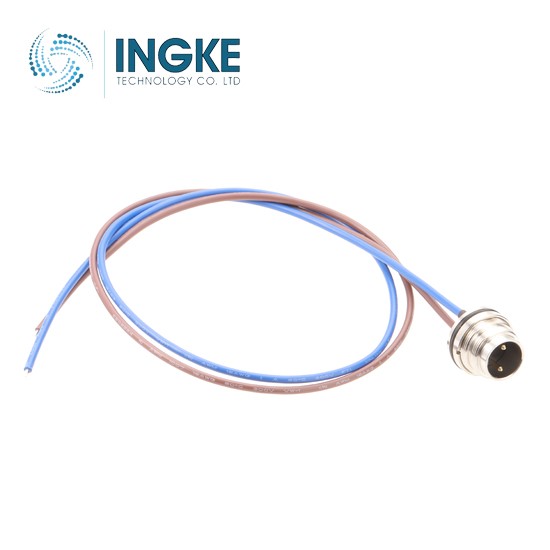

INGKE YKP16-E102ASRH-500 M16 Connector
Part No: YKP16-E102ASRH-500
Made in China: INGKE TECHNOLOGY
INGKE Part No.: YKP16-E102ASRH-500
Lead time: 1-2 weeks
MOQ: 1 pcs
Description: YKP16-E102ASRH-500 M16 Cable Assembly
Connector End A: M16 Connector Male 2Pin
Connector End A Pin Count: 2 Position
Connector End B: Bared
Gender: Male
Cable Length: 0.5m (can be customized)
Coding: A Coded
Current Rating: 7A
Voltage Rating: 250V
IP Rating: IP67
Temperature Rating: -25℃ To +85℃
Standard IEC 61076-2-101
Quality Standard IPC-A-620
Contact Resistance: ≥ 100 MΩ
Protection Class: Meets Nema 1,3,4,6p And IEC IP67
Contact Carrier Material: -
Contact Material/Plating: Copper Alloy Gold Plated
Housing Locknut Material/Plating: Brass/Nickel
Cable Material: 16AWG silicone electronic wire
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
