YKM12-RT108A01 TE Connectivity T4113011081-000

INGKE YKM12-RT108A01 100% cross T4113011081-000 TE Connectivity

Part No.: T4113011081-000 TE Connectivity
INGKE Part No.: YKM12-RT108A01
Made in China: INGKE TECHNOLOGY
Lead Time: 1-2 Weeks
MOQ: 1PCS

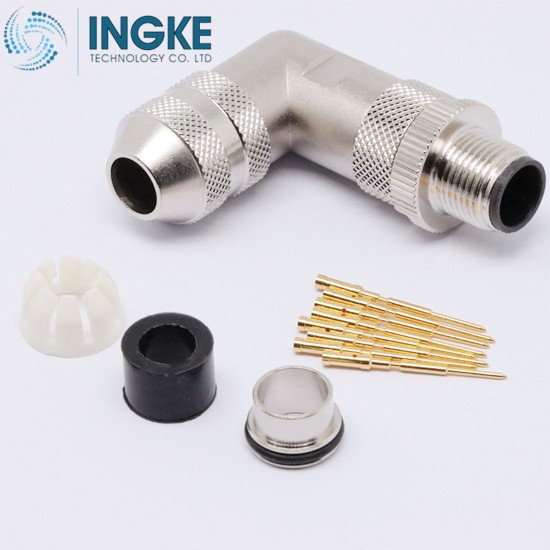

Description: T4113011081-000 TE Connectivity M12 Connectors 8 Pin Receptacle Male

Category: Connectors, Interconnects, Circular Connectors
Connector Type: Receptacle, Male Pins
Number of Positions: 8
Shell Size - Insert: M12-4
Orientation: A
Mounting Type: Free Hanging (In-Line), Right Angle
Mounting Feature: -
Termination: Screw
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Silver
Backshell Material, Plating: -
Contact Material: Zinc Alloy
Insert Material: Polyamide (PA), Nylon
Current Rating (Amps): 2A
Voltage Rating: 30V
Operating Temperature: -40°C ~ 85°C
Features: Backshell
Shielding: Shielded
Ingress Protection: IP67 - Dust Tight, Waterproof
Applications: Industrial, Medical, Automotive, Data Management
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
