YKM12-KL08A02 T4110011081-000 TE Connectivity

Product Description:

INGKE YKM12-KL08A02 cross TE Connectivity T4110011081-000

Part Number:TE Connectivity AMP Connectors T4110011081-000

INGKE Part No.:YKM12-KL08A02

Lead time: 1-2 weeks

MOQ: 1pcs

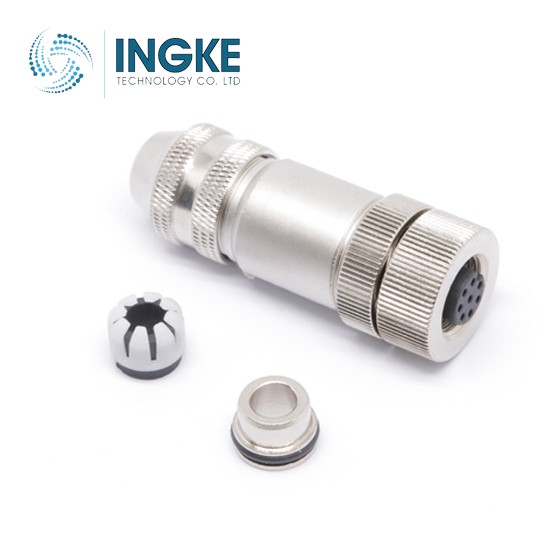

Description:M12 Circular Connector 8 Position Female Sockets Screw

Category: Connectors, Interconnects, Circular Connectors, Circular Connector Assemblies

Connector Type: Plug, Female Sockets

Number of Positions: 8

Shell Size - Insert: M12-8

Mounting Type: Free Hanging (In-Line)

Termination: Screw

Fastening Type: Threaded

Orientation: A

Primary Material: Metal

Shell Material: Brass

Shell Finish: Nickel

Contact Finish - Mating: Gold

Color: Silver

Features: Backshell, Coupling Nut

Shielding: Shielded

Backshell Material, Plating: Brass, Nickel

Contact Material: Zinc Alloy

Insert Material: Polyamide (PA), Nylon

Current Rating (Amps): 2A

Voltage Rating: 30V

Operating Temperature: -40°C ~ 85°C

Ingress Protection: IP67 - Dust Tight, Waterproof

Applications: Industrial

Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

Tags: T4110011081-000 TE Connectivity M12 Circular Connectors
