Product Description:
INGKE YKM12-PN205A-701 100% cross M12A-05PFFP-SF8001 Amphenol LTW
Part No.: M12A-05PFFP-SF8001 Amphenol LTW
INGKE Part No.: YKM12-PN205A-701
Made in China: INGKE Technology

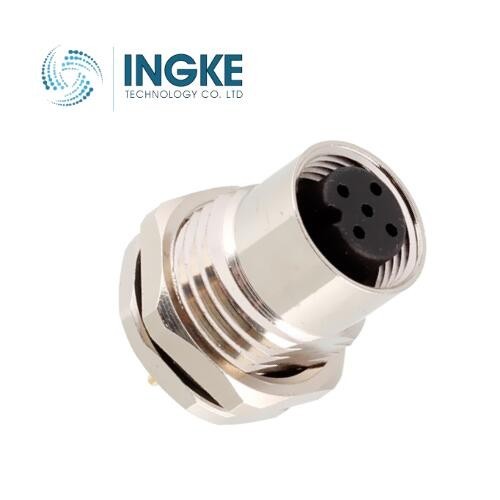

Description: M12A-05PFFP-SF8001 Amphenol LTW M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Push-Twist
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 60V
Operating Temperature: -25°C ~ 85°C
Contact Material: Copper Zinc
Insert Material: Polyamide (PA66), Nylon 6/6
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
