Product Description:

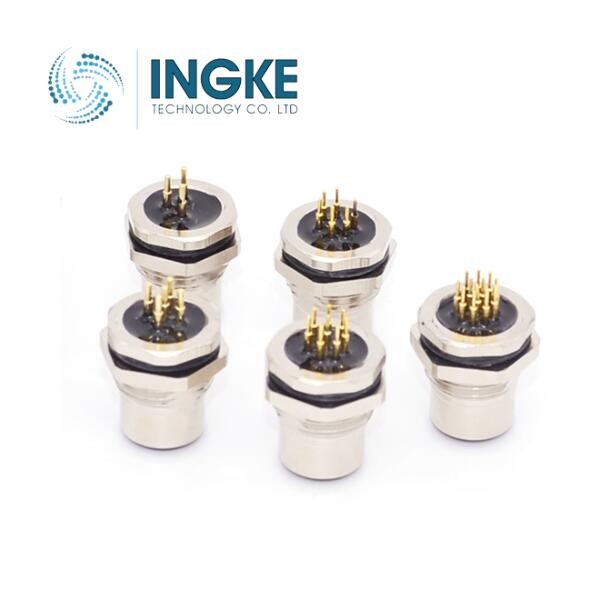

INGKE YKM12-PN203A-702 100% cross M12A-03PFFP-SF8002 Amphenol LTW
Part No.: M12A-03PFFP-SF8002 Amphenol LTW
INGKE Part No.: YKM12-PN203A-702
Made in China: INGKE Technology
Description: M12A-03PFFP-SF8002 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 3
Shell Size - Insert: M12-3
Mounting Type: Panel Mount, Through Hole
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Orientation: A
Primary Material: Metal
Shell Material: Zinc Alloy
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 250VAC/DC
Operating Temperature: -40°C ~ 105°C
Contact Material: Copper Alloy
Insert Material: Polyamide (PA), Nylon, Glass Filled
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
