Product Description:
INGKE YKM8-PTB0204A 100% cross 1526169 Phoenix Contact
Part No.: 1526169 Phoenix Contact
INGKE Part No.: YKM8-PTB0204A
Made in China: INGKE Technology

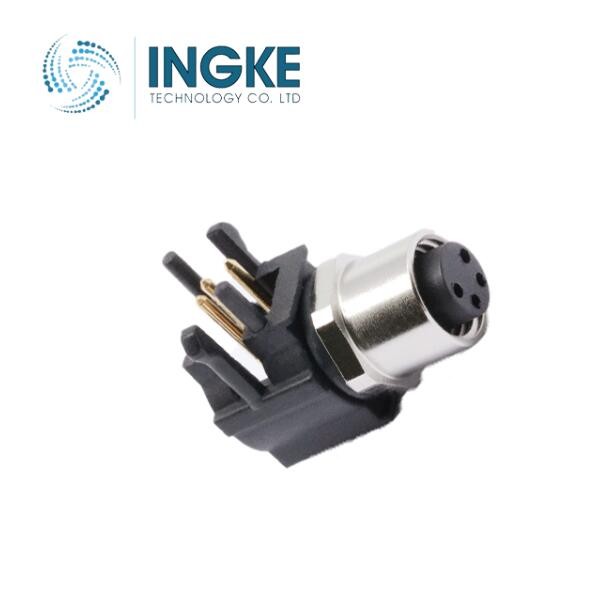

Description: 1526169 M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 4
Shell Size - Insert: M8-4
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: Solder
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 50VAC, 60VDC
Operating Temperature: -40°C ~ 85°C
Applications: Automation Control, Industrial, Telecommunications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
