Product Description:
INGKE YKM12-P208ARPRH 100% replace 861-008-213R004 NorComp
Part No.: 861-008-213R004 NorComp
INGKE Part No.: YKM12-P208ARPRH
Made in China: INGKE TECHNOLOGY
Lead Time: 1-2 Weeks
MOQ: 1PCS

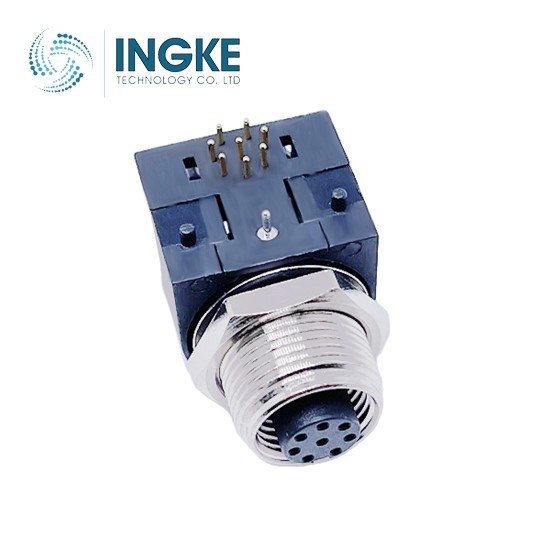

Description: 861-008-213R004 NorComp M12 Circular Connectors
Category: Connectors, Interconnects, Circular Connectors
Connector Type: Plug, Female Sockets
Number of Positions: 8
Shell Size - Insert: M12-8
Orientation: A
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Primary Material: Metal
Shell Material: Brass
Shell Finish: -
Contact Finish - Mating: Gold
Color: Black, Silver
Backshell Material, Plating: -
Contact Material: Brass
Insert Material: Polybutylene Terephthalate (PBT)
Current Rating (Amps): 2A
Voltage Rating: 30V
Operating Temperature: -40°C ~ 85°C
Features: Board Guide
Shielding: Shielded
Ingress Protection: IP67 - Dust Tight, Waterproof
Applications: Industrial, Medical
Lead Free: RoHS Compliant
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
