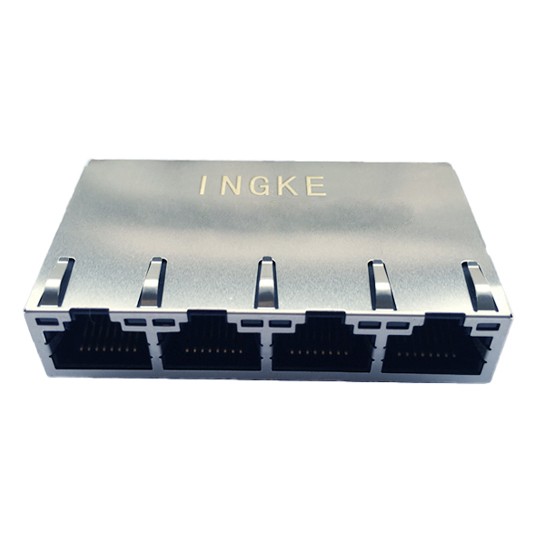

YKT-661506NL 6610150-6 TE Connectivity

Product Description:

INGKE YKT-661506NL 100% compatible with 6610150-6 TE Connectivity

Part No.: 6610150-6 TE Connectivity
INGKE Part No.: YKT-661506NL
Made in China: INGKE Technology
Description: 6610150-6 TE Connectivity 4 Ports 10G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10G Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.555" (14.10mm)
LED Color: Green, Yellow - Green, Yellow
Number of Cores per Jack: 12
Shielding: Shielded, EMI Finger
Features: Board Lock
Tab Direction: Up
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Polyethylene Terephthalate (PET), Polyester
Categories: Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
