Product Description:
INGKE YKM12-RP12A02 100% cross 6-2271129-2 TE Connectivity
Part No.: 6-2271129-2 TE Connectivity
INGKE Part No.: YKM12-RP12A02
Made in China: INGKE Technology

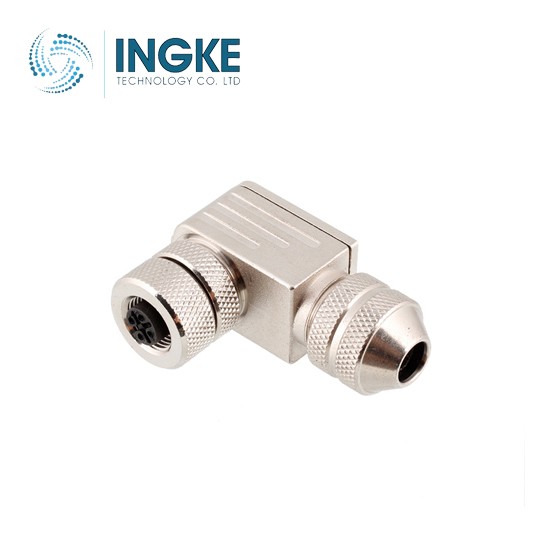

Description: 6-2271129-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 12
Shell Size - Insert: M12-12
Mounting Type: Free Hanging (In-Line), Right Angle
Termination: Screw
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Features: Backshell, Coupling Nut
Shielding: Shielded
Current Rating (Amps): 2A
Voltage Rating: 30VAC/DC
Cable Opening: 0.236" ~ 0.315" (6.00mm ~ 8.00mm)
Operating Temperature: -40°C ~ 85°C
Backshell Material, Plating: Zinc Die Cast, Nickel
Contact Material: Bronze
Contact Finish Thickness - Mating: 19.7µin (0.50µm)
Insert Material: Polyamide (PA), Nylon
Applications: Industrial Automation
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
