Product Description:

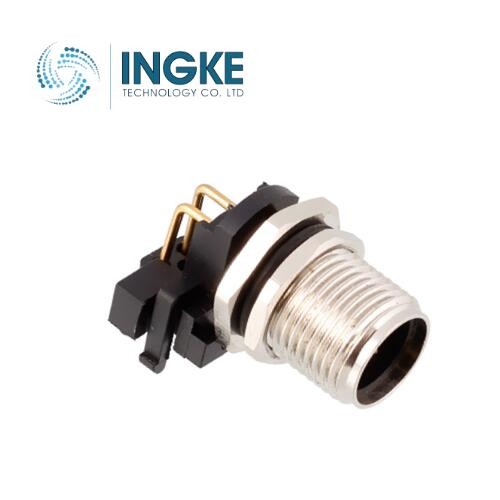

INGKE YKM12-PTB3108A 100% cross 5-2172081-2 TE Connectivity
Part No.: 5-2172081-2 TE Connectivity
INGKE Part No.: YKM12-PTB3108A
Made in China: INGKE Technology
Description: 5-2172081-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Male Pins
Number of Positions: 8
Shell Size - Insert: M12-8
Mounting Type: Panel Mount, Through Hole, Right Angle
Termination: Solder
Fastening Type: Threaded
Orientation: A
Shielding: Shielded
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Insert Material: Polybutylene Terephthalate (PBT), Polycarbonate (PC)
Current Rating (Amps): 2A
Voltage Rating: 60V
Operating Temperature: -40°C ~ 85°C
Applications: Automotive, Industrial
Ingress Protection: IP68 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
