Product Description:
INGKE YKM12-PTB3208A 100% cross 5-2172079-2 TE Connectivity
Part No.: 5-2172079-2 TE Connectivity
INGKE Part No.: YKM12-PTB3208A
Made in China: INGKE Technology

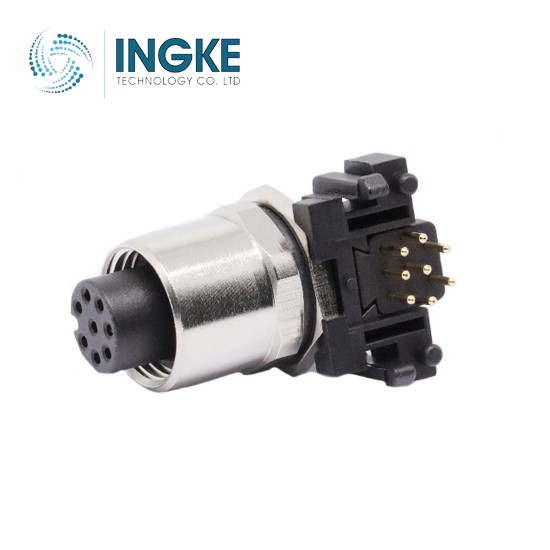

Description: 5-2172079-2 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 8
Shell Size - Insert: M12-8
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Material: Zinc Die Cast
Insert Material: Polybutylene Terephthalate (PBT), Polycarbonate (PC)
Current Rating (Amps): 2A
Voltage Rating: 60V
Operating Temperature: -40°C ~ 85°C
Shielding: Shielded
Ingress Protection: IP68 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
