Product Description:
INGKE YKM12-PTB3205A 100% cross 43-01199 Conec
Part No.: 43-01199 Conec
INGKE Part No.: YKM12-PTB3205A
Made in China: INGKE Technology

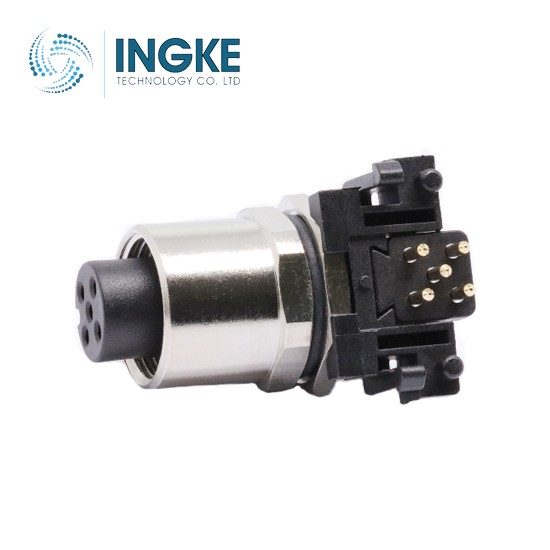

Description: 43-01199 M12 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Plug, Female Sockets
Number of Positions: 5
Shell Size - Insert: M12-5
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Copper Zinc
Shell Finish: Nickel
Contact Finish - Mating: Gold
Contact Material: Copper Zinc
Insert Material: Polyamide (PA), Nylon, Glass Filled
Current Rating (Amps): 4A
Voltage Rating: 60V
Operating Temperature: -30°C ~ 85°C
Shielding: Shielded
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
