YKM8-PTB0203A 1524788 Phoenix Contact

INGKE YKM8-PTB0203A 100% cross 1524788 Phoenix Contact

Part No.: 1524788 Phoenix Contact
INGKE Part No.: YKM8-PTB0203A
Made in China: INGKE Technology

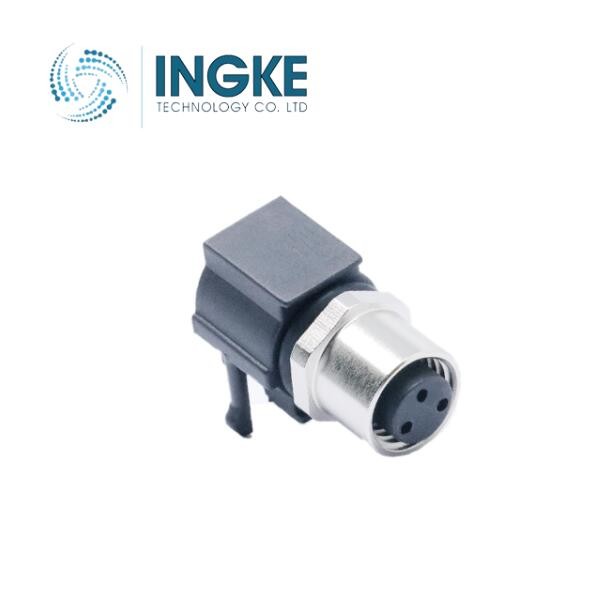

Description: 1524788 M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type:  Receptacle, Female Sockets
Number of Positions: 3
Shell Size - Insert: M8-3
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: Solder
Orientation: A
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 4A
Voltage Rating: 50VAC, 60VDC
Operating Temperature: -25°C ~ 85°C
Contact Material: Copper Tin
Insert Material: Polyamide (PA66), Nylon 6/6
Applications: Automation Control, Industrial, Telecommunications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
