Product Description:

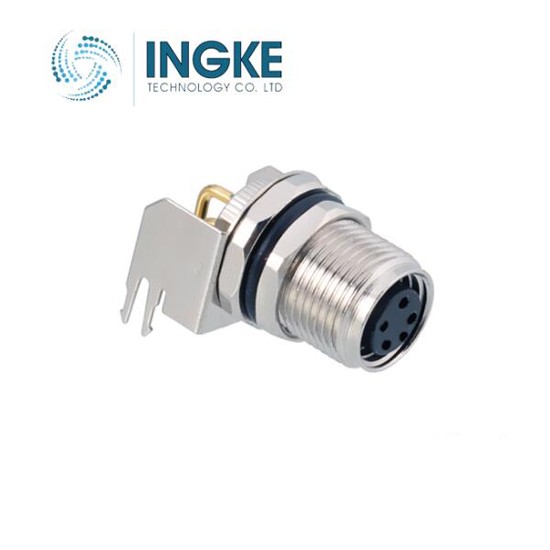

INGKE YKM8H305FV 100% cross 09 3424 82 05 Binder
Part No.: 09 3424 82 05 Binder
INGKE Part No.: YKM8H305FV
Made in China: INGKE Technology
Description: 09 3424 82 05 M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: Receptacle, Female Sockets
Number of Positions: 5
Shell Size - Insert: M8-5
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: THT
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Rated voltage: 60 V
Rated impulse voltage: 1500 V
Rated current (40 °C): 3.0 A
Operating Temperature: -40°C ~ 85°C
Applications: Automation Control, Industrial, Telecommunications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
