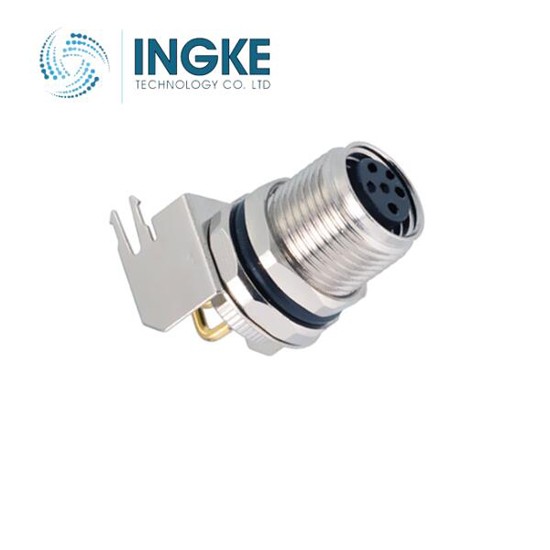

  • YKM8H306FV 09 3422 82 06 Binder

YKM8H306FV 09 3422 82 06 Binder

Product Description:
INGKE YKM8H306FV 100% cross 09 3422 82 06 Binder

Part No.: 09 3422 82 06 Binder
INGKE Part No.: YKM8H306FV
Made in China: INGKE Technology
Description: 09 3422 82 06 M8 Circular Connector
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: Receptacle, Female Sockets
Number of Positions: 6
Shell Size - Insert: M8-6
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead
Termination: THT
Primary Material: Metal
Shell Material: Zinc Die Cast
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Rated voltage: 30 V
Rated impulse voltage: 800 V
Rated current (40 °C): 1.5 A
Operating Temperature: -40°C ~ 85°C
Applications: Automation Control, Industrial, Telecommunications
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
