Product Description:
INGKE YKT-322113NL 100% compatible with RJMG322DN11E3ER Amphenol ICC
Part No.: RJMG322DN11E3ER Amphenol ICC
INGKE Part No.: YKT-322113NL
Made in China: INGKE Technology

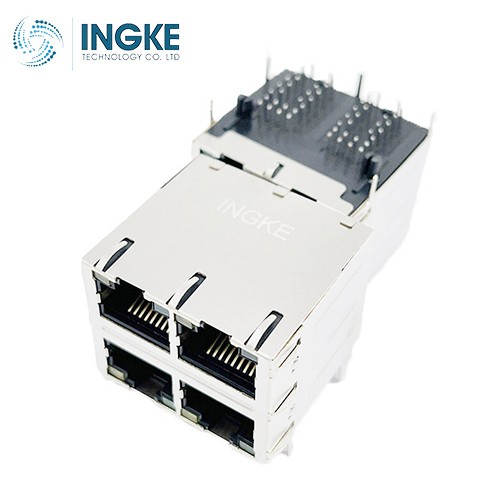

Description: RJMG322DN11E3ER Amphenol ICC 4 Ports RJ45 10G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 4
Number of Rows: 2
Applications: 10G Base-T, AutoMDIX
Mounting Type: Panel Mount, Through Hole
Orientation: 90° Angle (Right)
Termination: Press-Fit
Height Above Board: 0.988" (25.10mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 10
Shielding: Shielded, EMI Finger
Features: Board Guide, Filter, Light Pipe
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40°C ~ 85°C
Shield Material: Brass
Housing Material: Thermoplastic
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
