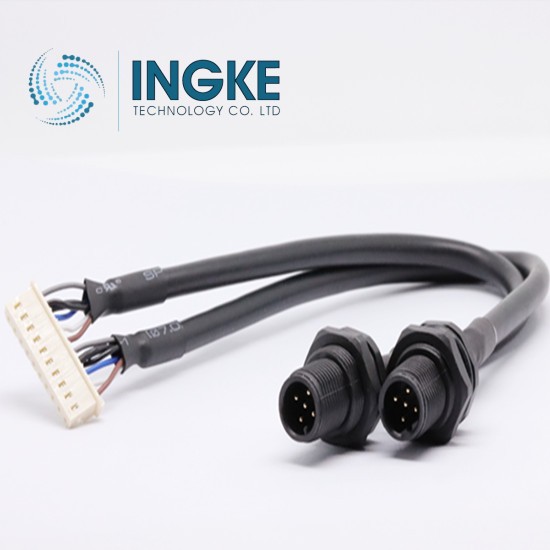

YKS12-ACS305AB-JTT-225 Two M12 and Mini-SPOX Receptacle Cable

Product Item : YKS12-ACS305AB-JTT-225 INGKE
Category： Custom Connectors & Cables
M12 and Mini-SPOX Receptacle Cable
INQUIRY EMAIL

Product Description:

YKS12-ACS305AB-JTT-225 Two M12 and Mini-SPOX Receptacle Cable

1st connector YKM12-ACS0105A-500: M12 Male 5pin A code
2nd connector YKM12-ACS0105B-500: M12 Male 5pin B code

Specification:
Standard IEC 61076-2-101
Ingress Protection: IP67
Operating Temperature: -40°C ~ 85°C
Rated Voltage: 60V
Rated Current: 4A
Contact Resistance: ≤ 5mΩ

Material:
Insulator: PA66 UL94V-0 Black
Housing: PA66 UL94V-0 Black
Nut: PA66 UL94V-0 Black
O-Ring: NBR Black
Contact: Copper Alloy Gold Plated
Cable UL2464 24AWG

3rd connector connector replace Molex header 280856:
2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing,
Single Row, 10 Circuits,
Connector Type: Power, Rectangular
Mount: Cable, PCB
Housing Material: Nylon
Material: Nylon, Polyamide

Tags: M12 Cable
