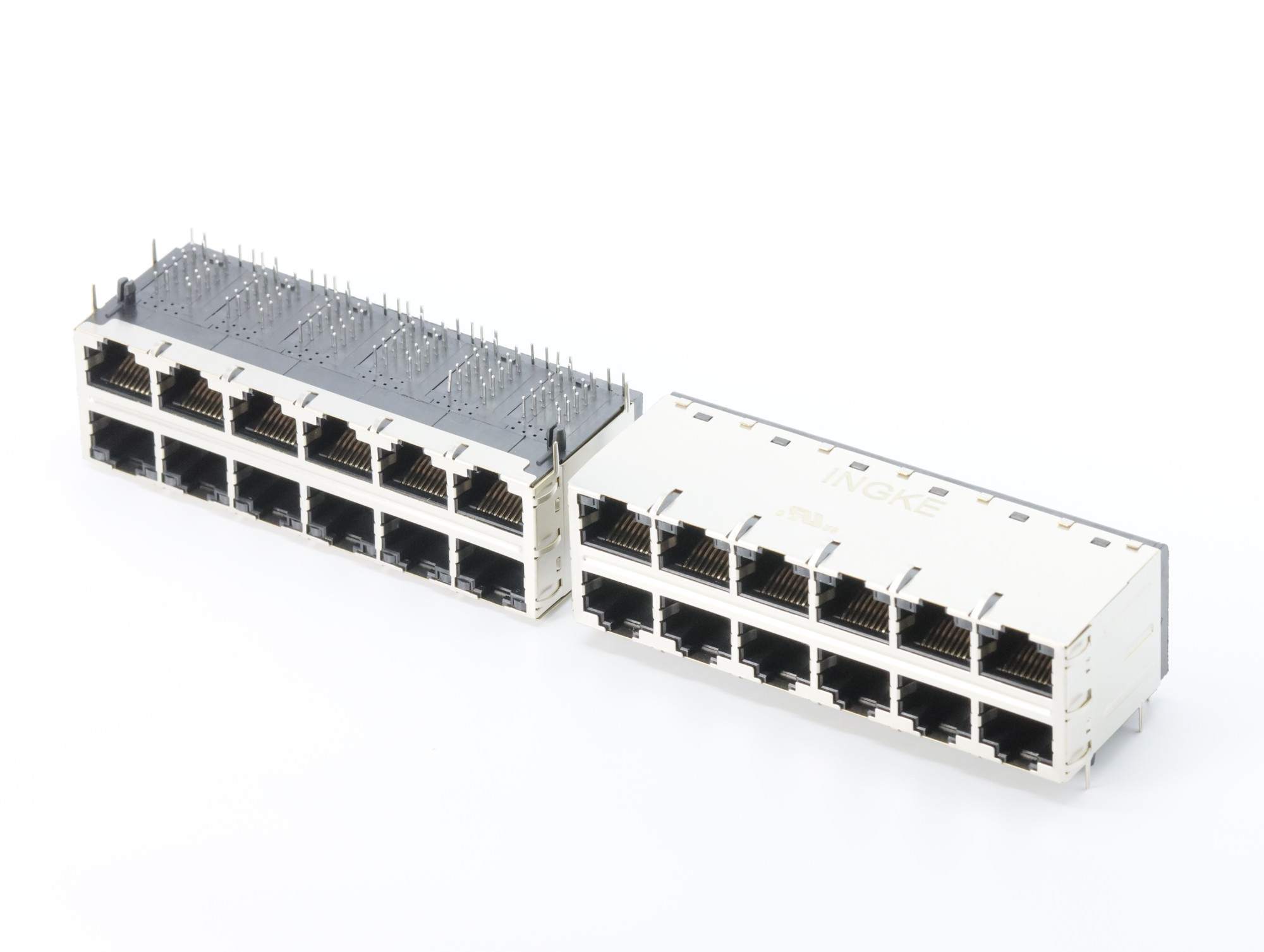

YKS-261809NL ARJM26A1-805-BA-CW2 Abracon

INGKE YKS-261809NL 100% compatible with ARJM26A1-805-BA-CW2 Abracon

Part No.: ARJM26A1-805-BA-CW2 Abracon
INGKE Part No.: YKS-261809NL
Made in China: INGKE Technology
Description: ARJM26A1-805-BA-CW2 Abracon 12 Ports 2.5G Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Type: RJ45
Number of Ports: 12
Number of Rows: 2
Applications: 2.5G Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 1.004" (25.50mm)
LED Color: Yellow - Green
Number of Cores per Jack: 8
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Up and Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Brass
Housing Material: Polybutylene Terephthalate (PBT)
Categories:Connectors, Interconnects,Modular Connectors,Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462

100% compatible, 100% test,  warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
