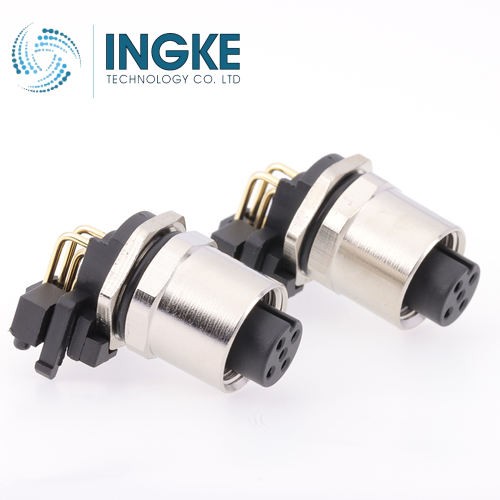

YKP12-M205ARPRN 1436644 Phoenix Contact

Product Item : YKP12-M205ARPRN INGKE
Category： M12 Panel Mount Connector
M12 5Pin Female A code
Replace 1436644 Phoenix Contact
INQUIRY EMAIL

Product Description:

INGKE YKP12-M205BRPRN 100% compatible with 1436644 Phoenix Contact

Part No.: 1436644 Phoenix Contact
INGKE Part No.: YKP12-M205ARPRN
Made in China: INGKE Technology
Description: 1436644 Phoenix Contact M12 5Pin Female A code
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Category: Circular Connectors
Connector Type: Insert, Female Sockets
Shell Size: M12
Number of Positions: 5
Mounting Type: Panel Mount, Through Hole, Right Angle
Mounting Feature: Bulkhead - Front Side Nut
Termination: Solder
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Copper Alloy
Shell Finish: Nickel
Contact Finish - Mating: Gold
Ingress Protection: IP67 - Dust Tight, Waterproof
Current Rating (Amps): 2A
Voltage Rating: 30V
Operating Temperature: -40°C ~ 85°C
Contact Material: Zinc Die Cast
Insert Material: Polyamide (PA), Nylon
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell

Tags: 1436644 Phoenix Contact
