YKP08-P203AFNH 1681172 Phoenix Contact

Product Item : YKP08-P203AFNH INGKE
Category： Products

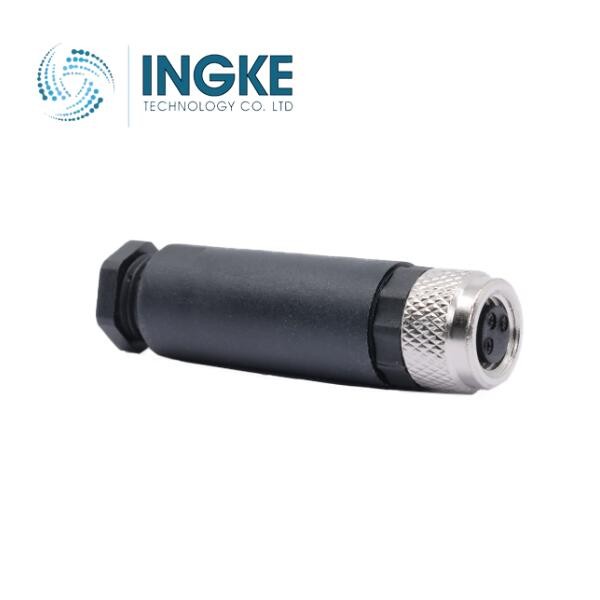

M8 3Pin A code Female Sockets
Replace 1681172 Phoenix Contact
INQUIRY EMAIL

Product Description:

INGKE YKP08-P203AFNH 100% compatible with 1681172 Phoenix Contact

Part No.: 1681172 Phoenix Contact
INGKE Part No.: YKP08-P203AFNH
Made in China: INGKE Technology
Description: 1681172 Phoenix Contact M8 3Pin A code Female Sockets
MOQ: 1PCS
Lead Time: 1-2 Weeks

Category: Connectors, Interconnects, Circular Connectors
Connector Type: Receptacle, Female Sockets
Number of Positions: 3
Shell Size - Insert: M8-3
Mounting Type: Free Hanging (In-Line)
Mounting Feature: -
Termination: Solder Cup
Fastening Type: Threaded
Orientation: A
Primary Material: Metal
Shell Material: Brass
Shell Finish: Nickel
Contact Finish - Mating: Gold
Color: Black, Silver
Ingress Protection: IP67 - Dust Tight, Waterproof
Material Flammability Rating: UL94 HB
Features: Backshell, Coupling Nut
Current Rating (Amps): 4A
Voltage Rating: 48VAC, 60VDC
Cable Opening: 0.138" ~ 0.197" (3.50mm ~ 5.00mm)
Operating Temperature: -40°C ~ 85°C
Backshell Material, Plating: Polybutylene Terephthalate (PBT)
Contact Material: Copper Zinc
Contact Finish Thickness - Mating: -
Insert Material: Polyamide (PA), Nylon
Applications: Industrial environment
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH

Tags: 1681172 Phoenix Contact，M8
