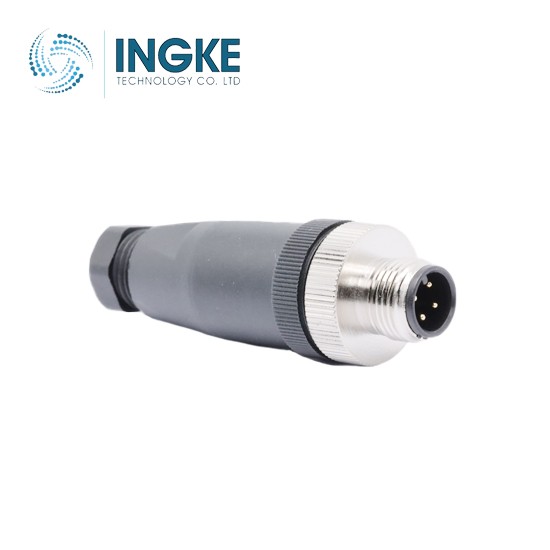

YKM12-ATS1104A 3-2271110-1 TE

Product Item : YKM12-ATS1104A INGKE
Category： M12 Field-Attachable Connector
M12 Male A Code 4Pin
Replace 3-2271110-1 TE
INQUIRY EMAIL

Product Description:

INGKE YKM12-RT04A01 100% compatible with 3-2271110-1 TE

Part No.: 3-2271110-1 TE
INGKE Part No.: YKM12-RT04A01
Made in China: INGKE Technology
Description: 3-2271110-1 TE M12 Male A Code 4Pin
MOQ: 1PCS
Lead Time: 1-2 Weeks

Connector Category: Connectors, Interconnects/Circular Connectors
Connector Type: Male, Plug
Shell Size: M12
Number of Positions: 4
Orientation: A
Mechanical mounting: for cable
Electrical mounting: screw terminal
Locking system: external thread, threaded joint
Spatial orientation: straight
Current Rating (Amps): 4A
Voltage Rating: 250V
Housing Material: PU
Contact Body Material: PU
Contact Material: Copper Alloy
Shielding: Not Shielded
Contact Plating: Gold
Color: Black, Silver
Operating Temperature: -25°C ~ 85°C
Ingress Protection: IP67 - Dust Tight, Waterproof
Moisture Sensitivity Level (MSL): 1 (Unlimited)
RoHS Compliant and REACH
