Product Description:

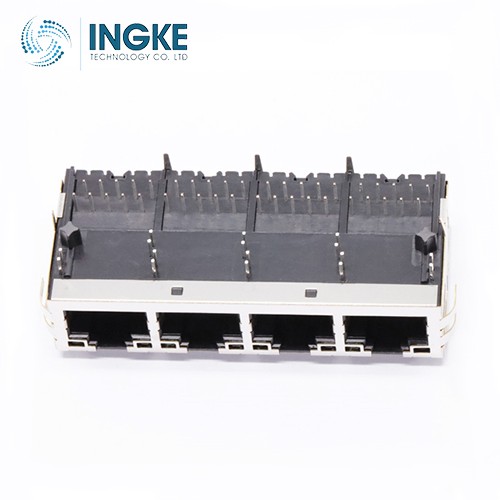

INGKE YKJ-631433NL 100% compatible with A63-143-313P161 EDAC
Part No.: A63-143-313P161 EDAC
INGKE Part No.: YKJ-631433NL
Made in China: INGKE Technology
Description: A63-143-313P161 EDAC 4 Ports 10/100 Base-T
MOQ: 1PCS
Lead Time: 1-2 Weeks
Connector Type: RJ45
Number of Ports: 4
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90° Angle (Right)
Termination: Solder
Height Above Board: 0.543" (13.80mm)
LED Color: Yellow - Green
Number of Cores per Jack: 4
Shielding: Shielded
Features: Board Lock
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: 0°C ~ 70°C
Shield Material: Copper Alloy
Housing Material: Polybutylene Terephthalate (PBT), Glass Filled
Categories:Connectors, Interconnects, Modular Connectors, Modular Connector Jacks With Magnetics
MSL: 1 (Unlimited)
Lead Free, RoHS Compliant
INGKE UL No.: E530462
100% compatible, 100% test, warranty for 60 months
Factory with UL, supplier of Marvell & Honeywell
